Custom Rubber Sealing Strip - Multi-Shape H/P/U/D Profile Extrusion OEM/ODM
- group name
- Rubber Sealing Strip
- Min Order
- 1 piece
- brand name
- RESRUB rubber and plastic products manufacturer
- model
- RESRUB-SEAL-STRIP
- Nearest port for product export
- Shenzhen, Guangzhou
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FAS, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash
- update time
- Fri, 21 Aug 2026 21:00:50 GMT
Paramtents
Material EPDM / NBR / Silicone / CR / PVC / TPV / TPE
Profile Shape H / P / D / U / E / L / T / Custom
Hardness (Shore A) 40 – 90 (custom)
Working Temperature -50°C to +200°C
Tensile Strength 5 – 20 MPa
Elongation at Break 200% – 600%
Density 0.95 – 1.55 g/cm³
Color Black / White / Gray / RAL / Pantone
Adhesive Backing Optional (3M / Tesa tape)
Standard Length 30 – 100 m roll or cut-to-length
Certifications RoHS / REACH / FDA (compound-dependent)
OEM/ODM Custom profile, compound, packaging
Sample Free sample available
Lead Time 7–15 days standard / 15–30 days new tooling
HS Code 4016 93 00 00
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Custom Rubber Sealing Strip - Multi-Shape H/P/U/D Profile Extrusion OEM/ODM | Custom Rubber Sealing Strip | OEM/ODM Custom
Custom rubber sealing strip / multi-shape H/P/U/D profile extrusion. EPDM/NBR/Silicone/CR/PVC, custom color/hardness/shape OEM/ODM.
Product Overview
Our rubber sealing strips are produced by precision extrusion with custom-designed tooling to deliver the exact profile your application demands — H-shape, P-shape, D-shape, U-shape, E-shape, L-shape, T-shape, and many bespoke geometries. We work with EPDM, NBR, Silicone, Neoprene (CR), PVC, TPV, TPE, and natural rubber to match the environment: weatherproof outdoor, oil-resistant, food-grade, flame-retardant, anti-static, or high/low temperature. Common uses include door/window seals, automotive weatherstrip, machinery gaskets, electrical cabinet door gaskets, container seals, and edge protectors. As a direct factory, we provide full OEM/ODM: profile design support, custom compound, hardness 40–90 Shore A, any color, and cut-to-length or continuous coils.

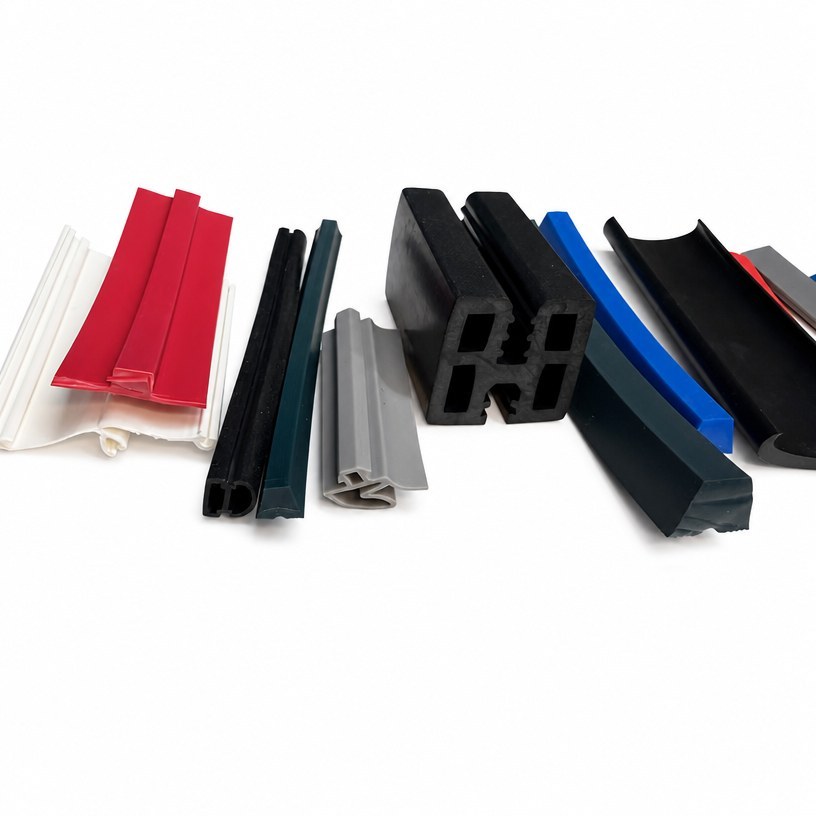

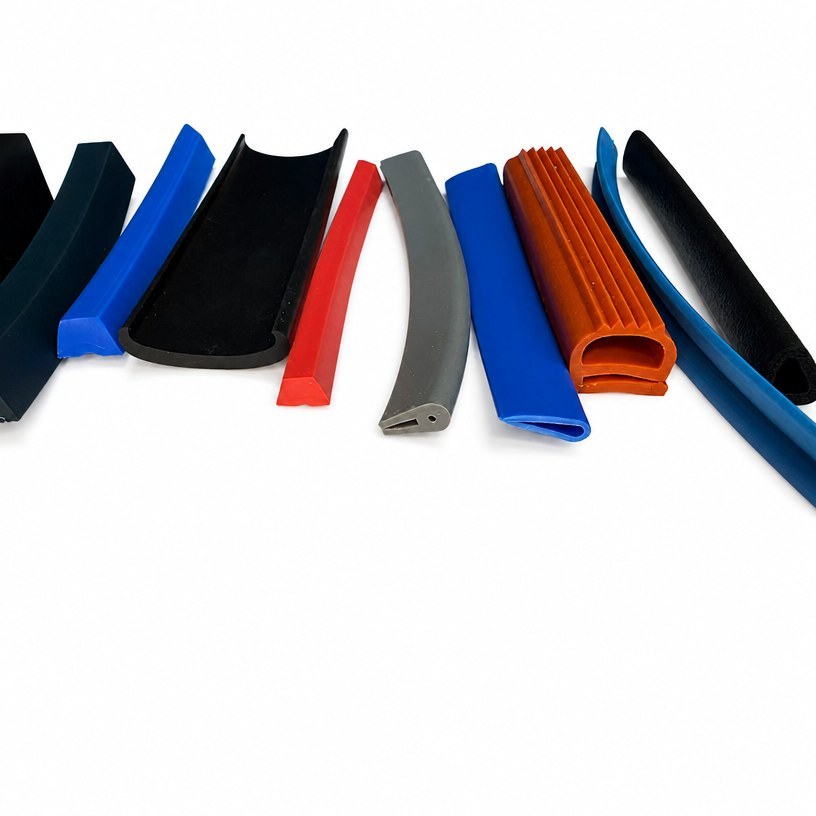

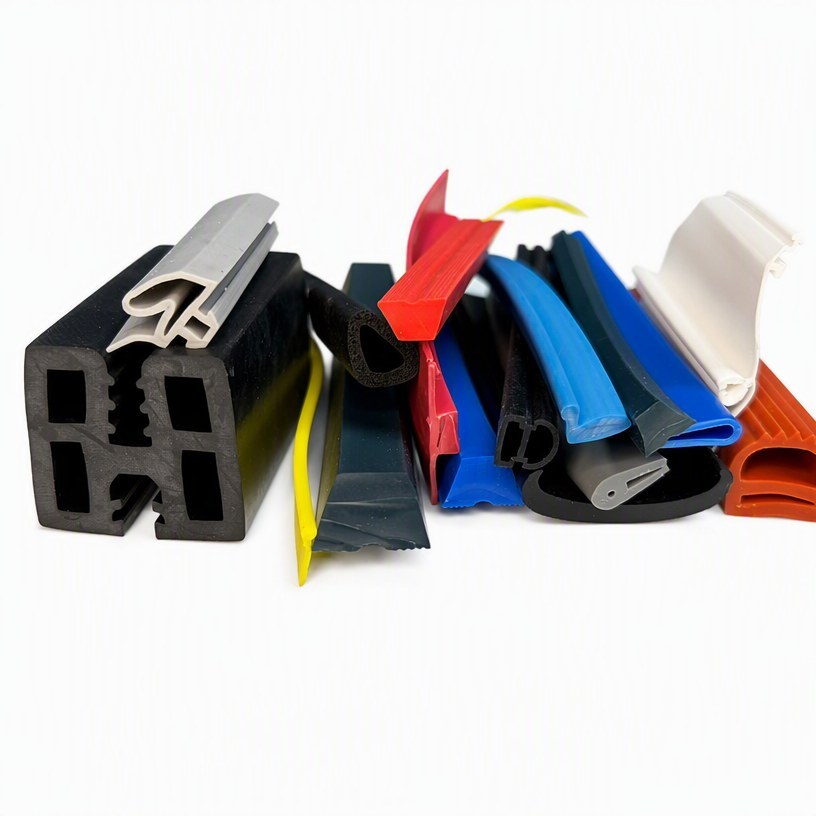

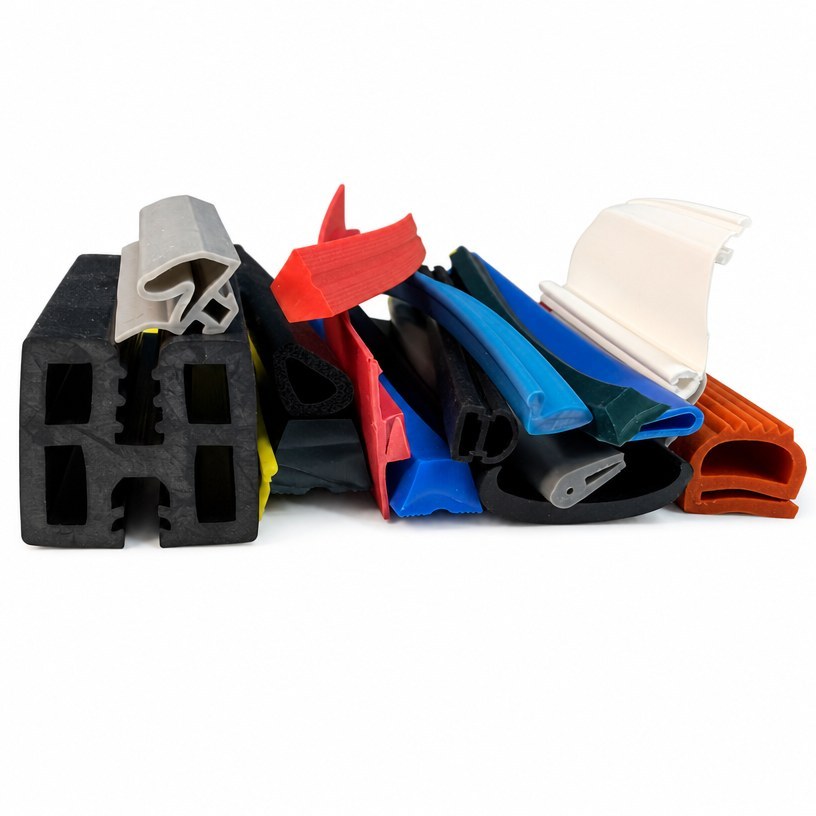

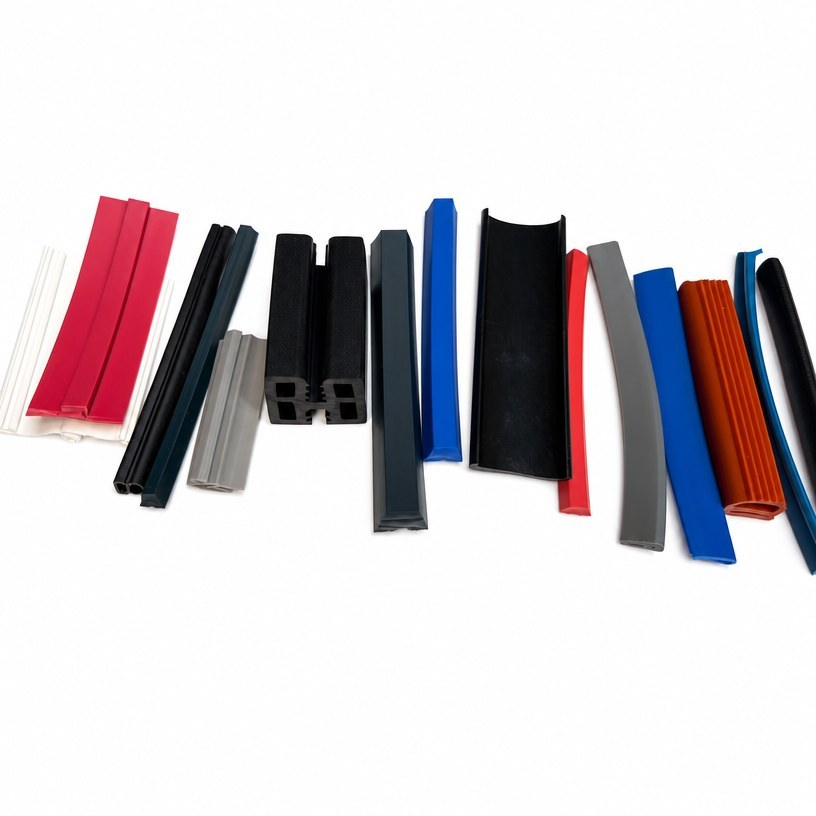

Product Gallery
Key Features & Advantages
- Custom profile extrusion — H, P, D, U, E, L, T shapes and bespoke geometries
- Wide material selection: EPDM, NBR, Silicone, CR, PVC, TPV, TPE for any environment
- Weather, UV, ozone, and aging resistant (EPDM) for outdoor / door / window seals
- Oil and fuel resistant (NBR) for automotive and engine bay applications
- Wide temperature range: -50°C to +200°C (silicone) for oven/boiler/electrical seals
- Hardness 40 – 90 Shore A; density and compression set tunable per compound
- Fire-retardant, FDA-grade, anti-static, conductive compounds available
- Custom colors with RAL/Pantone matching + cut-to-length or continuous coils
Technical Specifications
| Profile Shape | H, P, D, U, E, L, T, or custom (3D drawing welcome) |
|---|---|
| Material Options | EPDM / NBR / Silicone / CR / PVC / TPV / TPE / NR |
| Hardness (Shore A) | 40 – 90 (custom compound) |
| Working Temperature | -50°C to +200°C (depends on material) |
| Tensile Strength | 5 – 20 MPa |
| Elongation at Break | 200% – 600% |
| Density | 0.95 – 1.55 g/cm³ |
| Color | Black, white, gray, red, blue, green, yellow, RAL/Pantone match |
| Standard Length | 30 m, 50 m, 100 m roll (or cut-to-length) |
| Self-Adhesive Backing | 3M / Tesa tape optional (one side or two sides) |
| OEM/ODM | Custom profile, custom compound, private label |
| Lead Time | 7–15 days for standard / 15–30 days for new tooling |
Material & Color Options
Standard material: EPDM / NBR / Silicone / CR / PVC / TPV / TPE (per application). Custom colors and hardness available on request.
Typical Applications
- Door and window weatherstrip for buildings, vehicles, cabinets, containers
- Automotive weatherstrip and body sealing strips
- Electrical cabinet / control box door gaskets
- Machinery enclosure seals and edge protectors
- Container, garage, and shutter door bottom seals
- Solar panel frame sealing and rooftop mounting gaskets
- Appliance lid / oven / refrigerator / dishwasher seals
Packaging & Delivery
Standard packaging: continuous coil wrapped in PP film + woven bag + carton. Cut-to-length pieces bundled with paper bands. Custom retail-ready packaging, blister packs, and private-label boxes available on request.
FAQ
Can you produce my custom profile?
Yes. Send us a drawing, sample, or even a sketch. Our tooling workshop will produce the extrusion die in 7–10 days, then trial samples within 3–5 days.
Which material should I choose?
EPDM for outdoor/weather/UV; NBR for oil/fuel; Silicone for high temperature (200°C) or food contact; PVC for low-cost; TPV/TPE for recyclable. Tell us your environment and we recommend the right compound.
Can you add self-adhesive backing?
Yes. 3M / Tesa / generic adhesive tape can be applied to one or both sides. Peel strength and temperature range selectable.
What is the MOQ?
Standard profiles MOQ 500 m; new custom tooling MOQ 1,000–2,000 m. Free samples of standard profiles available.
Request a Quote
Send us your drawing or sample, or describe your application — we will recommend the right material and tooling, and ship free samples within 48 hours.
